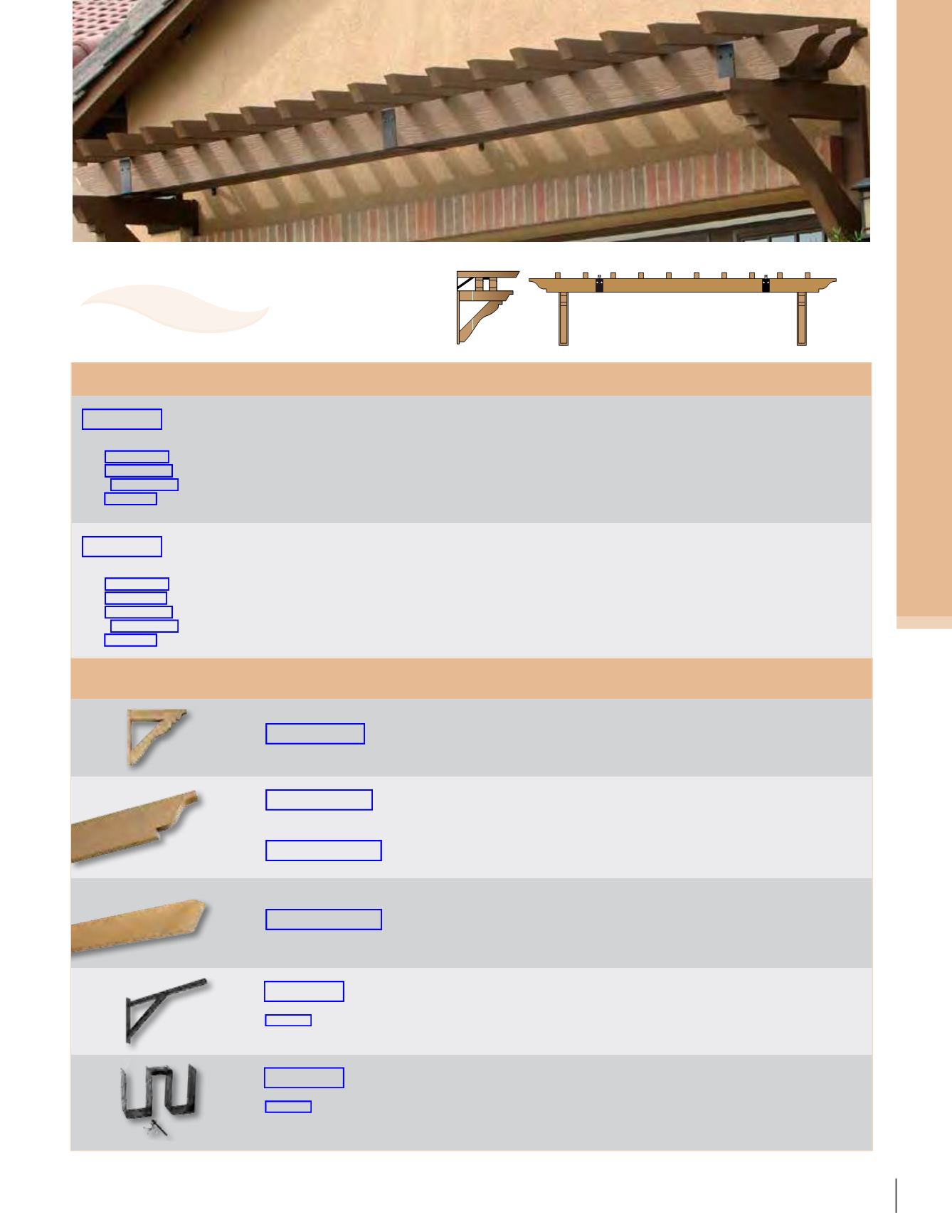

Trellis System
Trellis Kit Part Number & Contents
Overall Width (Installed)
Overall Height (Installed)
Projection (Installed)
TRLS18987Fits 16'-18' Garage Doors
(2)
BKT32X31X5S,Outlooker
(4)
BMD4X8X144S,12' Beam
(18)
FLTBA36X3X3S,Rafter Tail
(1)
TRLS18989,Hardware Kit
21' 9"
Over 16' Door
23' 9"
Over 18' Door
41
7
/
8
"
36"
TRLS18988Fits 8'-9' Garage Doors
(2)
BKT32X31X5S,Outlooker
(2)
BMD4X8X48S,4' Beam
(2)
BMD4X8X144S,12' Beam
(10)
FLTBA36X3X3S,Rafter Tail
(1)
TRLS18994,Hardware Kit
13' 9"
Over 8' Door
14' 9"
Over 9' Door
41
7
/
8
"
36"
Individual Trellis Components
Part Number
Projection
Height
Overall Width
BKT32X31X5SOutlooker
32
1
/
2
"
30
5
/
8
"
5
1
/
4
"
BMD4X8X48S^Beam
4
1
/
4
"
7
3
/
4
"
48"
BMD4X8X144S^Beam
4
1
/
4
"
7
3
/
4
"
144"
FLTBA36X3X3S^Lattice
36"
3
1
/
2
"
2
3
/
4
"
TRLS18989Hardware Kit for
TRLS18987Kit Contains:
(3) Angle Bracket
(3) U Bracket
(1) Screw Pack
(1) Installation Guide
—
—
TRLS18994Hardware Kit for
TRLS18988Kit Contains:
(2) Angle Bracket
(2) U Bracket
(1) Screw Pack
(1) Installation Guide
—
—
NOTE: See smooth catalog for smooth trellis
^ This product is not finished on all sides
NOTE: For installation instructions, please visit
www.fypon.comScrolled profile on one end
only
Angled on one end
only
